SmartSite (Shanghai) Electronic Technology Co., Ltd. (stock abbreviation: SmartSing, stock code: 688213) announced the launch of a new 5MP high-resolution fast-start IoT series image sensor - SC535IoT. This new back-illuminated product is equipped with SmartClarity-3 technology, Lightbox IR technology and second-generation SmartAEC technology. It supports three major functions: near-infrared sensitivity enhancement, full-time recording, and high dynamic range. It also takes into account ultra-low power consumption performance and is the ideal solution for high-end Internet of Things. The camera brings better night vision full-color imaging performance and can meet the demand for higher resolution in smart home vision systems.

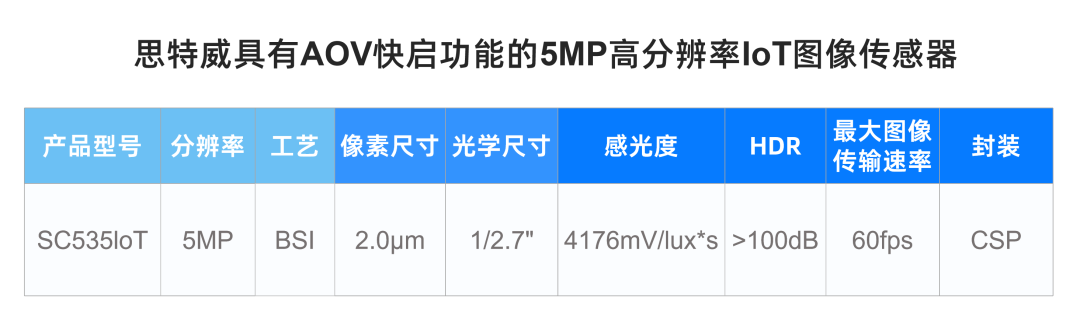

The SC535IoT released this time is designed with a resolution of 2592Hx1944V, provides a larger vertical space with a 4:3 format, and supports binocular stitching to better empower new IoT models such as spherical panoramic cameras and fisheye cameras, providing It provides critical support for the efficient operation of home IoT cameras and other IoT scenarios.

Advanced second-generation SmartAEC technology achieves excellent full-time recording function

Conventional home IoT cameras can only start recording or notify users when motion or a specific event occurs, so they cannot meet the security needs of users to understand the situation at home at any time.

SC535IoT is SmartSite's first CMOS image sensor product equipped with second-generation SmartAEC technology. It cooperates with the main control SoC chip to support full-time video recording (AOV) function. When an event is triggered, the SC535IoT can record at a speed of up to 60fps; when there is no event, the SC535IoT can continuously record at an ultra-low frame rate of 1 frame per second, with a power consumption of less than 50mW, thus achieving 7× with the ultra-low-power AOV function 24-hour video recording solves the shortcomings of traditional IoT camera solutions that do not have recording information during event triggering, and achieves the goal of keeping the battery charged. SC535IoT can provide all-weather monitoring coverage for various scenarios such as hunting cameras, outdoor 4G solar cell IPCs, smart video doorbells/door locks, and driving recorders. Users can remotely view real-time conditions anytime, anywhere through mobile applications or web browsers, which greatly Improved monitoring flexibility and efficiency.

Excellent high frame rate + low power consumption design, achieving dual guarantees of smooth battery life

Thanks to SmartSite's excellent high frame rate design, SC535IoT can output images at a rate of 60fps, helping cameras capture videos in a smoother and clearer way, and accurately record the expressions, behaviors and activities of the elderly, children and pets at home. . This helps users understand the situation at home in a more timely manner and provides protection for the safety of family members.

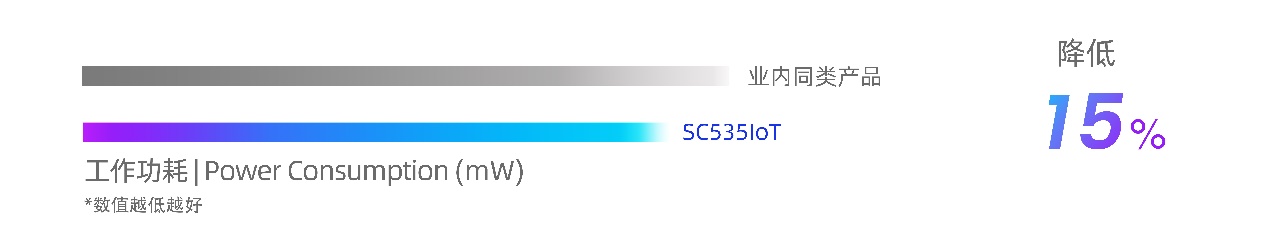

In addition, with the support of SmartSite's excellent low-power design, the operating power consumption of SC535IoT is 15% lower than that of similar products in the industry, thereby providing better battery life for high-end home IoT cameras and significantly reducing the risk of occurrence during operation. heat, enhancing the durability and long-term stability of the camera and extending its service life.

Supported by multiple advanced technologies such as LightBox IR, it creates excellent night vision full-color imaging effects

Nighttime is a time when family potential risks increase. For example, the elderly may have difficulty moving around at night or children may need extra care at night. IoT cameras with excellent night vision performance can provide clearer images, helping family members understand and respond to emergencies more accurately.

SC535IoT is based on SmartClarity's unique SmartClarity-3 technology, combined with the newly upgraded BSI pixel process and mask splicing technology, and is equipped with innovative technologies such as SmartSite's outstanding LightBox IR technology to achieve excellent near-infrared sensitivity enhancement functions. Even at night or in low-light scenes, it can provide cameras with high-quality and highly reliable image information with high sensitivity, low noise, and high dynamic range (HDR).

   High sensitivity

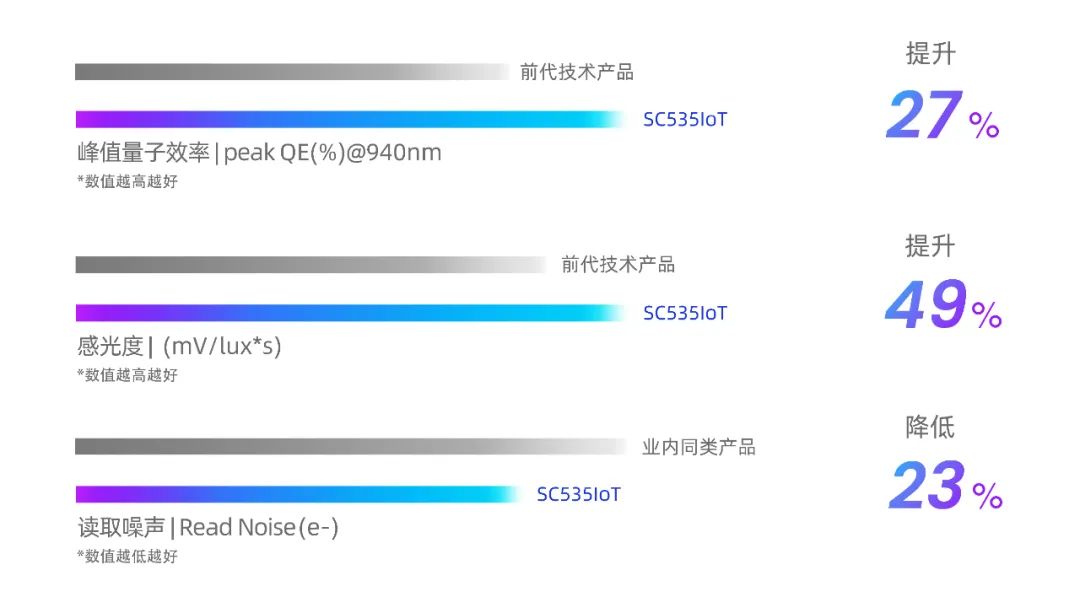

SC535IoT adopts advanced LightBox IR technology, which has excellent photosensitive performance in the infrared band by introducing improved deep trench isolation (DTI). Compared with the previous generation technology products, SC535IoT has improved peak quantum efficiency (peak QE) by about 27% at 940 nanometer wavelength; its sensitivity has been improved by over 49%, helping high-end IoT vision systems to operate even in low-light nights. Shoot clearly and present a bright picture, thereby achieving ultra-clear monitoring of your home at night.

   low noise

With SmartSite's innovative ultra-low noise peripheral reading circuit technology, SC535IoT achieves better noise suppression. The read noise of SC535IoT is as low as 0.62e-, which is 23% lower than similar products in the industry. It brings clean images, low noise, and clear details, and also provides better imaging performance for nighttime application scenarios. .

   HDR

SC535IoT supports more than 100dB double-exposure staggered HDR mode, allowing IoT cameras to capture a wider range of light at night or in low-light environments, presenting richer light and dark details and clearer images. information. Compared with similar products, the HDR of SC535IoT is improved by nearly 10dB.

Dr. Mo Yaowu, co-founder and chief technology officer of SmartSite, said: "The SC535IoT released this time is SmartSens' new masterpiece in the field of 5MP high-resolution IoT image sensors. This new product is equipped with SmartSens' unique A variety of innovative technologies such as SmartClarity-3, Lightbox IR, and second-generation SmartAEC integrate the three major functions of near-infrared sensitivity enhancement, full-time recording, and high dynamic range. SC535IoT can output high-quality images at a high frame rate of 60fps, while Lower power consumption ensures all-weather image recording, and the chip can also achieve excellent image quality in low-light scenes at night, fully empowering rich smart applications and scenarios in the Internet of Things."

SC535IoT is currently accepting samples and is expected to be mass-produced in Q2 2024.
